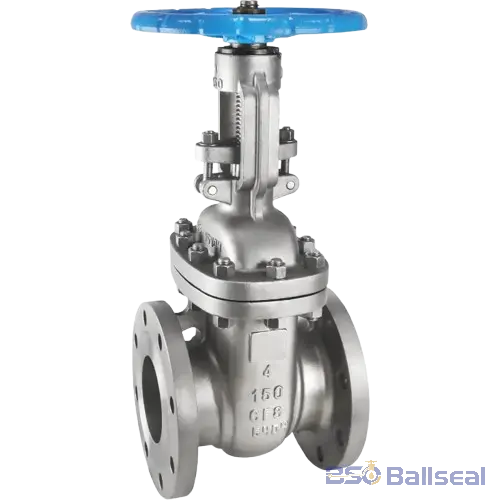

4″ Class 150 CF8 Stainless Steel Gate Valve (API 600) – Corrosion-Resistant Flanged Isolation

Get a Quote
Download Tech Specs

Engineered for heavy-duty industrial applications, this 4-inch Class 150 CF8 (304) Stainless Steel Gate Valve is strictly manufactured to API 600 and ASME B16.34 standards. Featuring a robust Outside Screw and Yoke (OS&Y) rising stem and a precision-machined solid wedge, this valve provides exceptional zero-leakage shut-off capabilities for high-pressure pipelines. Designed for durability in demanding environments, it is an ideal isolation solution for petrochemical, water treatment, and corrosive process systems.

🏭 Engineering & Compliance Highlights:

  • Premium Material: High-grade CF8 (ASTM A351) stainless steel casting for superior corrosion resistance.
  • Structural Integrity: OS&Y rising stem and bolted bonnet design ensure maximum safety and ease of maintenance.
  • Global Compliance: Built to API 600, ASME B16.5, and API 598 testing standards for guaranteed performance.
  • Full-Bore Flow: Straight-through design minimizes turbulence and pressure drop for efficient fluid transmission.
Category: Tags: , , ,
Design & Manufacture API 600 / ASME B16.34
Face-to-Face Dimension ASME B16.10
Flange Connection ASME B16.5 (RF / RTJ)
Pressure Rating Class 150 (300/600/900/1500 Available)
Test & Inspection API 598

Typical Chemical Composition (CF8/304)

Grade C% Si% Mn% P% S% Ni% Cr%
CF8 ≤0.08 ≤1.50 ≤1.50 ≤0.04 ≤0.04 8.0-11.0 18.0-21.0

Main Dimensions & Weight (Class 150)

Size DN L D D1 D2 b Z-Φd H W
2″ 50 178 150 120.5 92 15.9 4-Φ19 395 200
3″ 80 203 190 152.5 127 19.1 4-Φ19 485 250
4″ 100 229 229 190.5 157 23.9 8-Φ19 585 250
6″ 150 267 279 241.5 216 25.4 8-Φ22 770 300

⚡ Custom Automation Solutions

We offer turnkey automated valve packages: Electric Actuators (On/Off or Modulating) or Pneumatic Linear Actuators. All packages include pre-mounting and factory calibration.

🌐 Global Standards & Manufacturing

  • Standards: API 600, API 602, ASME B16.34, DIN EN 1984.
  • Material Traceability: ASTM/ASME grades (WCB, CF8, CF8M, Duplex, Titanium). Full MTC provided.
Design Feature

Bolted Bonnet, OS&Y
End Connection

Flanged
Material

CF8
Pressure Class

Class 150
