Detailed Technical Specifications

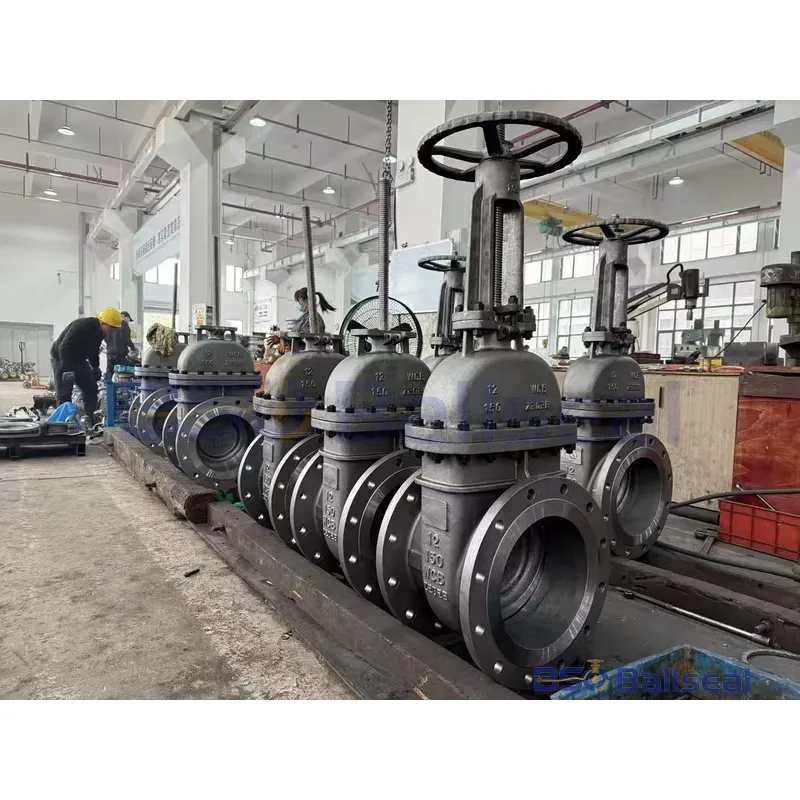

Our Cast Steel Gate Valves are designed to deliver exceptional long-term reliability and zero-leakage isolation in demanding industrial environments. Below are the precise technical details for the Class 150 WCB Series.
| Valve Type |
Gate Valve (Flanged Ends, OS&Y) |
| Design Standard |
API 600 / ASME B16.34 |
| Body Material |
ASTM A216 WCB (Cast Carbon Steel) |
| Pressure Rating |
ASME Class 150 |
Material Construction (WCB Series)
| Component |
Material Grade |
| Body / Bonnet |
ASTM A216 WCB |
| Solid Wedge |
WCB + 13Cr Overlay |
| Stem |
ASTM A182 F6a (13Cr) |
| Seat Ring |
ASTM A105 + 13Cr Surfacing |
Main Dimensions (Class 150 Series)
| Size (Inch) |
Face-to-Face (L/mm) |
Flange OD (mm) |
Height Open (mm) |
Weight (kg) |
| 4″ |
229 |
229 |
550 |
48 |
| 6″ |
267 |
279 |
765 |
85 |
| 8″ |
292 |
343 |
970 |
138 |
| 10″ |
330 |
406 |
1180 |
215 |
| 12″ |
356 |
483 |
1390 |
325 |
🌐 Material Integrity & Global Standards
Our WCB cast steel valves are manufactured from premium-grade carbon steel to ensure maximum pressure containment and superior structural integrity in heavy-duty oil, gas, and water applications. We manufacture strictly according to API 600 and ASME B16.34. Full EN 10204 3.1 Material Test Reports (MTRs) are provided with every shipment, guaranteeing complete traceability for your demanding EPC projects.
