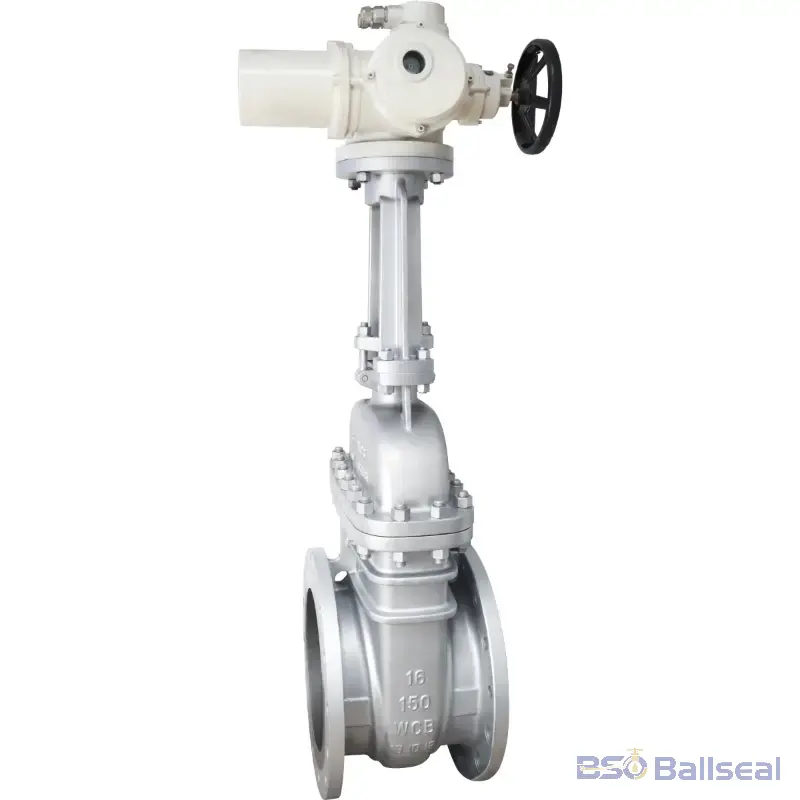

16″ Class 150 WCB Electric Gate Valve (API 600) – Motorized for Remote Pipeline Control

Get a Quote
Download Tech Specs

Engineered for heavy-duty remote pipeline control, this 16-inch Class 150 WCB Electric Gate Valve comes fully integrated with a precision multi-turn electric actuator. Built in strict accordance with API 600 and ASME B16.34 standards, it features a robust OS&Y design and a solid wedge for absolute zero-leakage isolation. It is the ultimate plug-and-play automated solution for water treatment, petrochemical plants, and critical power systems.

⚡ Automation & Engineering Highlights:

  • Turnkey Actuation: Pre-mounted, calibrated, and factory-tested electric motor operator for instant remote integration.
  • Manual Override: Equipped with a declutchable handwheel mechanism for safe, emergency manual operation during power loss.
  • Heavy-Duty Construction: Industrial-grade WCB Cast Carbon Steel body ensures maximum durability under Class 150 pressures.
  • Flange Connection: Standard ASME B16.5 RF ends for secure and seamless pipeline installation.
Category: Tags: , , , ,
Design & Manufacture API 600 / ASME B16.34
Actuator Type Electric Multi-Turn Motor (Remote Control)
Pressure Rating Class 150 (Class 300/600 Available)
Body Material WCB (Cast Carbon Steel)

Main Dimensions & Weight (Class 150 Series)

The table below illustrates our standard ASME B16.10 dimensions. For integrated electric actuation or custom flange configurations, please consult our engineering team.

Size (Inch) DN L (RF) D D1 D2 b Z-Φd
2″ 50 178 150 120.5 92 15.9 4-Φ19
4″ 100 229 229 190.5 157 23.9 8-Φ19
8″ 200 292 343 298.5 270 28.6 8-Φ22
12″ 300 356 483 431.8 381 31.8 12-Φ25
16″ 400 406 597 539.8 470 36.6 16-Φ29
20″ 500 457 699 635 584 42.9 20-Φ32

Electric Actuator Technical Specifications

Enclosure Rating IP67 (IP68 Optional for submerged service)
Explosion-Proof Grade Ex d IIB T4 / Ex d IIC T4 (Available on request)
Power Supply 3-Phase 380V/440V or 1-Phase 110V/220V
Control Signal 4-20mA, 0-10V, or Modbus Fieldbus
Duty Cycle S2 (Intermittent) or S4 (Modulating)

⚡ Turnkey Actuation & Automation Solutions

We specialize in high-torque linear actuation for critical infrastructure:

  • Intelligent Electric Actuators: Smart remote monitoring via DCS/PLC.
  • Emergency Manual Override: Declutchable handwheel for safety.

Send us your technical requirements.

🌐 Global Standards & Manufacturing Flexibility:

As a source manufacturer, we offer full customization:

  • Standards: ASME B16.34, API 600, API 602, DIN EN 1984.
  • Materials: WCB, LCB, CF8, CF8M, Duplex, Titanium (MTC provided).
Design Feature

Bolted Bonnet, Electric Actuated
End Connection

Flanged
Material

WCB
Pressure Class

Class 150
