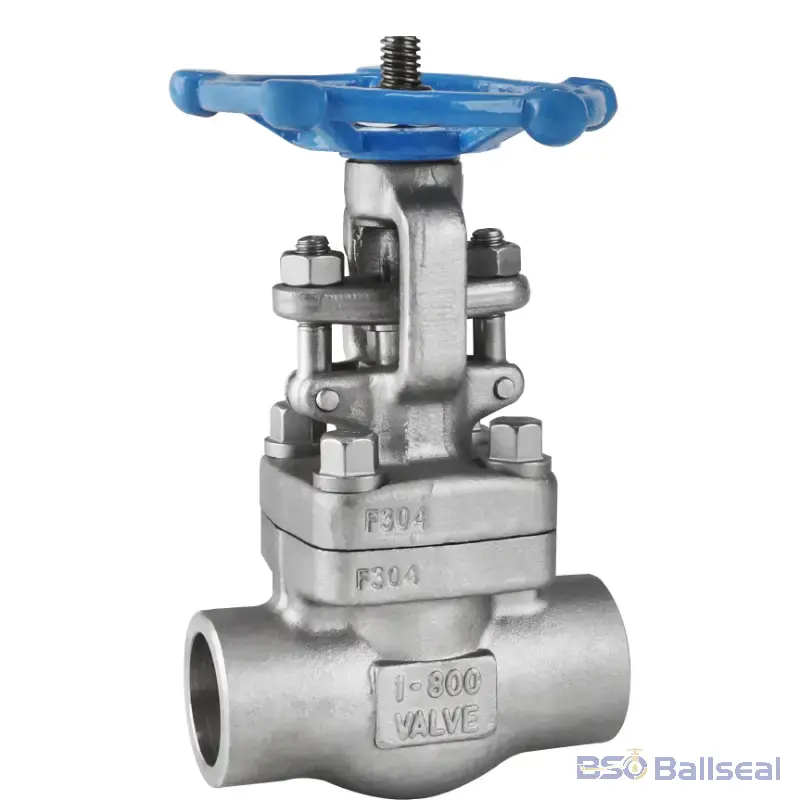

F304 forged stainless steel socket weld gate valve Class 800 with bolted bonnet

1-Inch Class 800 Forged Steel Gate Valve – F304 Socket Weld Industrial Valve

Get a Quote
Download Tech Specs

This 1-inch Class 800 Forged Steel Gate Valve is precision-manufactured from F304 Stainless Steel, designed specifically for high-pressure industrial applications. Featuring a robust socket weld (SW) connection, this valve ensures a leak-free, permanent piping seal. Its compact forged construction provides superior strength and reliability in demanding petrochemical, power, and refinery environments.

🏭 Engineering Highlights:

  • Forged Strength: Compact, high-strength forged F304 body.
  • Connection: Socket Weld (SW) for superior high-pressure seals.
  • Pressure Rating: Class 800 heavy-duty construction.
  • Standard: API 602 / ASME B16.34 compliant.
Category: Tags: , , , ,
Valve Type Forged Steel Gate Valve
Connection Socket Weld (SW) / Threaded (NPT)
Material F304 (ASTM A182)
Pressure Rating Class 800

Main Dimensions (Class 800 Forged Series)

Size (Inch) Socket Bore (mm) Face-to-Face (L) Handwheel OD
1/2″ 21.8 79 100
3/4″ 27.2 92 100
1″ 33.9 111 125
1-1/4″ 42.7 120 160
1-1/2″ 48.8 120 160
2″ 61.2 140 180
Design Feature

Bolted Bonnet, Forged Body, OS&Y
End Connection

Socket Weld / SW
Material

Forged Steel (F304)
Pressure Class

Class 800
