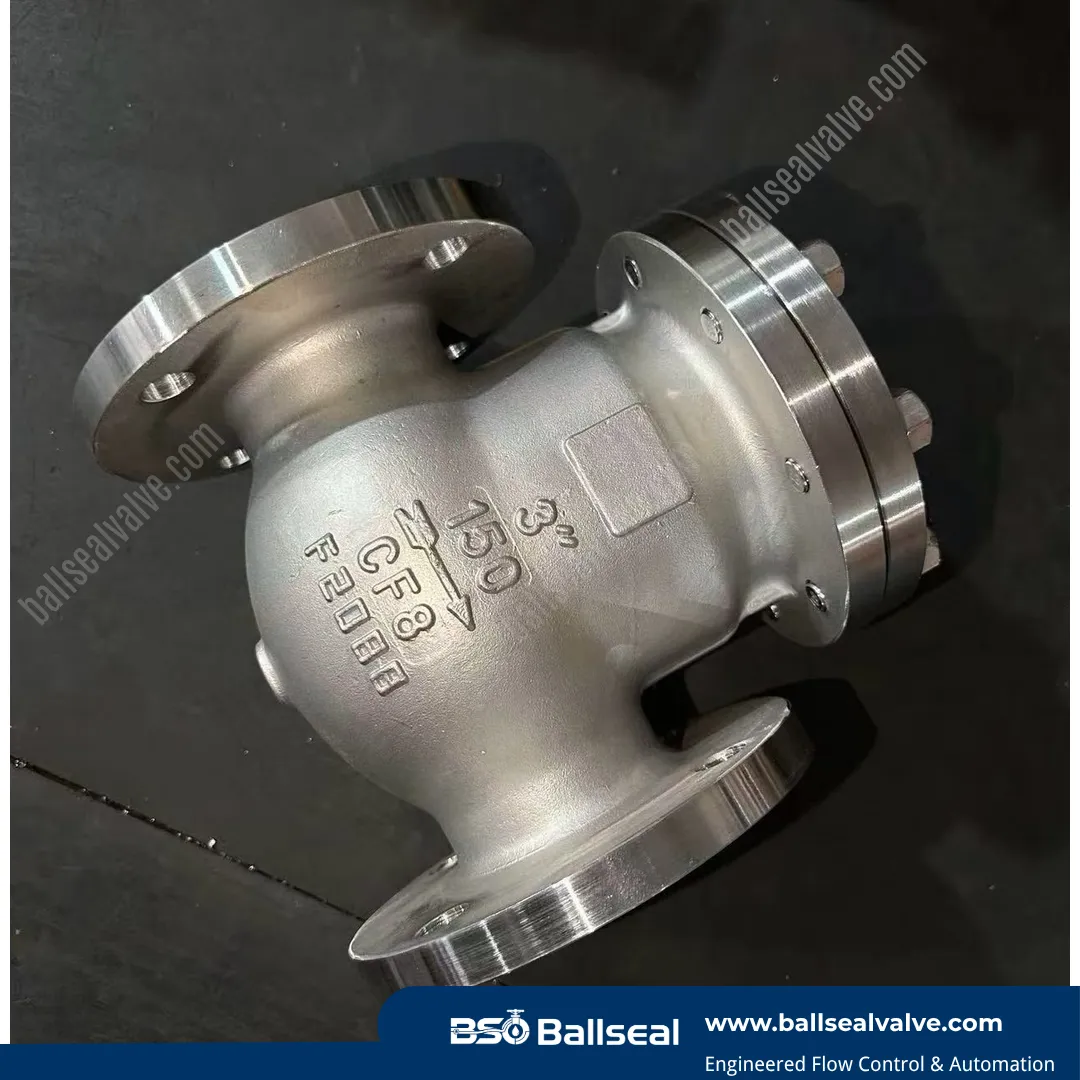

3 inch CF8 Check Valve Flanged 150LB

3 inch CF8 Check Valve Flanged 150LB | Industrial Pipeline Valve

Get a Quote Download Tech Specs

The 3-inch CF8 Check Valve is designed for critical pipeline operations, with a pressure rating of 150LB and flanged end connections for reliable sealing. Made from CF8 stainless steel, this valve is suitable for a wide range of industrial applications.

🏭 Engineering Highlights:

  • Design Feature: Bolted Bonnet, Flow Control, Forged Body
  • End Connection: Reliable Flanged (ANSI B16.5)
  • Material: CF8 stainless steel ensures corrosion resistance and durability
  • Pressure Class: Rated at 150LB for industrial applications
Category: Tag:

Detailed Technical Specifications

The 3” CF8 Check Valve is a carefully engineered solution for fluid flow control in pipelines. Crafted from premium CF8 stainless steel, this valve delivers exceptional corrosion resistance and durability in demanding environments. With its flanged connection and 150LB pressure rating, it adheres to strict standards and ensures operational reliability in a variety of industrial sectors.

Valve Type Check Valve
Design Standard Bolted Bonnet
Body Material CF8
Pressure Rating 150LB

Material Construction

Component Material Grade
Body CF8
Disc CF8
Bolts SS304
Gasket PTFE

Main Dimensions

Size Face-to-Face (mm) Flange OD (mm) Height (mm) Weight (kg)
3″ 150 210 300 9.5
4″ 200 250 320 12

🌐 Material Integrity & Global Standards

Manufactured according to international standards, this valve is designed to ensure long-term reliability and maintain its mechanical integrity under various environmental conditions.

Design Feature

Bolted Bonnet, Flow Control, Forged Body
End Connection

Flanged
Material

CF8
Pressure Class

Class 150
Seat Material

PTFE
