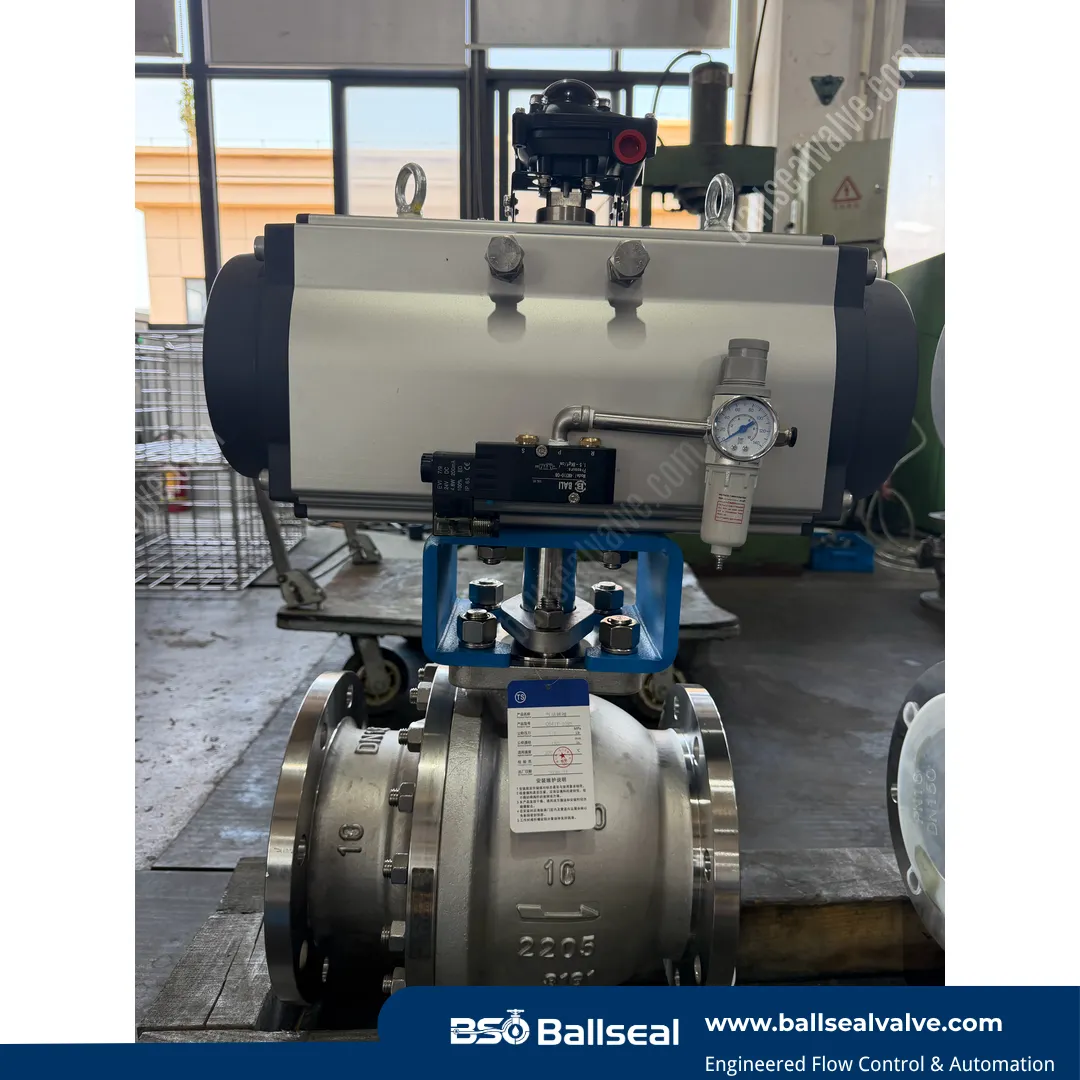

DN150 PN10 2205 Duplex Stainless Steel Flanged Ball Valve with Pneumatic Actuator
,

DN150 PN10 2205 Duplex Stainless Steel Ball Valve

Get a Quote Download Tech Specs

This DN150 ball valve is manufactured with 2205 Duplex Stainless Steel, offering exceptional corrosion resistance and durability. Designed for a PN10 pressure rating and equipped with flanged end connections, this valve ensures reliable performance in industrial applications.

🏭 Engineering Highlights:

  • Feature: Pneumatic actuator for automation and precise control.
  • Corrosion Resistance: Built with 2205 Duplex Stainless Steel for harsh environments.
  • Pressure Rating: Designed to handle PN10 applications.
  • End Connection: Flanged connection for secure pipeline integration.
Categories: , Tag:

Detailed Technical Specifications

The DN150 ball valve offers a robust solution for industrial flow control, featuring 2205 Duplex Stainless Steel construction and a PN10 pressure rating. Equipped with a pneumatic actuator, it provides ease of automation for high-efficiency processes. The valve’s flanged design ensures secure pipeline integration, suitable for a variety of applications including corrosive environments.

Valve Type Ball Valve
Design Standard Full port, ISO 5211 Mounting Pad, Ready for Automation
Body Material 2205 Duplex Stainless Steel
Pressure Rating PN10

Material Construction

Component Material Grade
Body 2205 Duplex Stainless Steel
Ball 2205 Duplex Stainless Steel
Stem 2205 Duplex Stainless Steel
Seats PTFE
Actuator Aluminum Alloy

Main Dimensions

Size Face-to-Face (mm) Flange OD (mm) Height (mm) Weight (kg)
DN150 280 350 190 35
DN100 240 280 150 25
DN200 340 450 230 55

🌐 Material Integrity & Global Standards

All valves are designed and manufactured in compliance with API, ISO, and ASME standards to ensure global reliability and performance.

Design Feature

Full port, ISO 5211 Mounting Pad, Pneumatic Actuated, Ready for Automation
End Connection

Flanged
Material

2205 Duplex Stainless Steel
Pressure Class

PN10
Seat Material

PTFE
