Detailed Technical Specifications

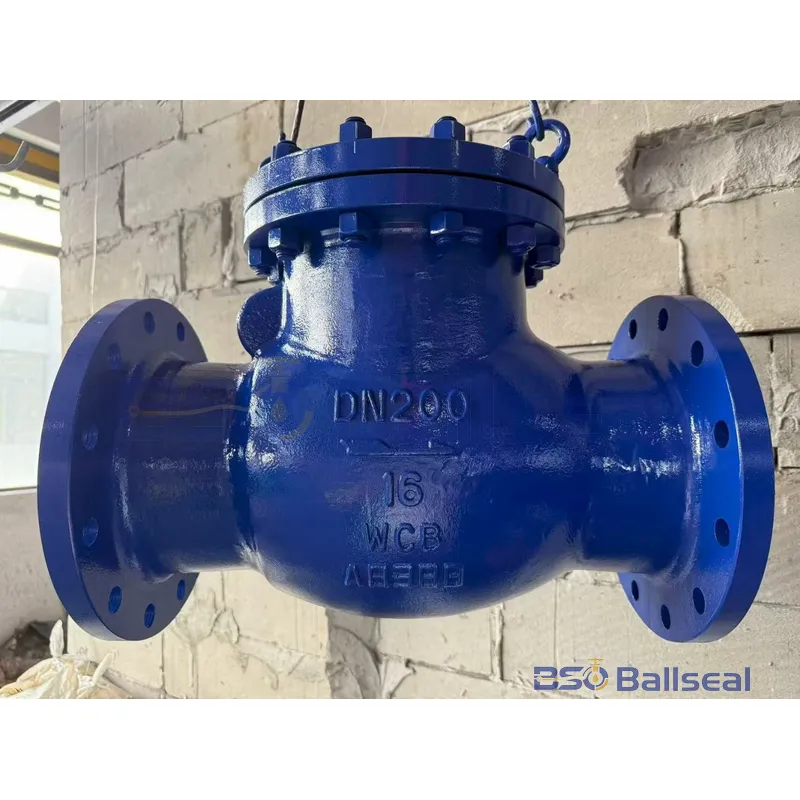

Our Cast Steel Swing Check Valves are designed to deliver exceptional reliability and zero-leakage backflow prevention in demanding industrial infrastructure. Below are the precise technical details for the PN16 WCB Carbon Steel Series.
| Valve Type | Swing Check Valve (Flanged Ends) |
| Design Standard | EN 13709 / DIN 3356 |
| Body Material | WCB Cast Carbon Steel (Equivalent to 1.0619) |
| Pressure Rating | PN16 |
Material Construction (PN16 WCB Series)
| Component | Material Grade |
|---|---|
| Body / Cover | WCB (Carbon Steel) |
| Disc | WCB + 13Cr Overlay |
| Hinge Pin | 2Cr13 / ASTM A182 F6a |
| Seat Ring | A105 + 13Cr Surfacing |
Main Dimensions (PN16 WCB Series)
| Size (DN) | Face-to-Face (L/mm) | Flange OD (D/mm) | Height (H/mm) |
|---|---|---|---|
| DN100 | 300 | 220 | 195 |
| DN125 | 350 | 250 | 215 |
| DN150 | 400 | 285 | 235 |
| DN200 | 500 | 340 | 285 |
| DN250 | 600 | 405 | 345 |
| DN300 | 700 | 460 | 395 |
🌐 Material Integrity & Global Standards
Our WCB cast steel check valves are manufactured from premium-grade carbon steel to ensure maximum structural integrity in industrial pipelines and general process applications. We manufacture strictly according to EN 13709 and DIN 3356. Full EN 10204 3.1 Material Test Reports (MTRs) are provided with every shipment, guaranteeing complete traceability for your EPC projects.
🛡️ Anti-Slam & Advanced Flow Control Options
To prevent destructive water hammer caused by sudden flow reversal in pump stations, BSO Ballseal provides custom engineered solutions for our swing check valves:
- Soft Seating: Optional EPDM or NBR inserts for absolute bubble-tight shut-off in water and low-pressure applications.
- External Dampeners: Optional lever and weight configurations for controlled, non-slam closure.
- Note: Face-to-face dimensions (L) conform to EN 558 (Basic Series 48).
- Looking for custom DIN materials like 1.4408 (Stainless Steel)?
Contact our engineering team to review your specific pipeline requirements.
