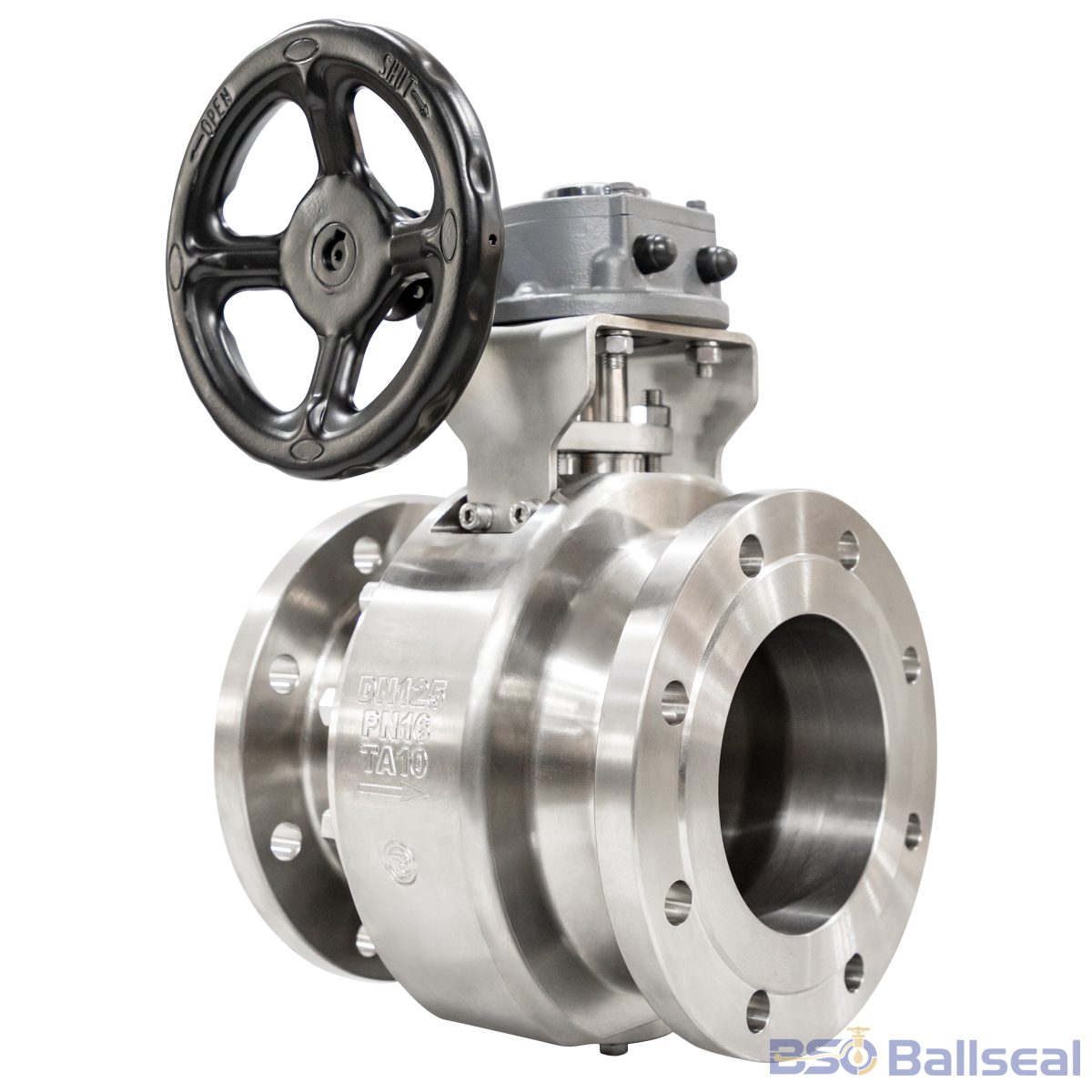

Titanium alloy (TA10) trunnion ball valve for severe corrosive industrial environments.DN125 TA10 Titanium Alloy Trunnion Ball Valve
,

DN125 TA10 Titanium Alloy Trunnion Ball Valve – High-Corrosion Resistant Industrial Valve| BSO Ballseal

Get a Quote
Download Tech Specs

This DN125 (5 Inch) Trunnion Mounted Ball Valve is forged from TA10 (Titanium-Molybdenum-Nickel Alloy), representing the ultimate solution for extreme corrosive environments. TA10 offers significantly higher resistance to crevice corrosion and stress corrosion cracking compared to traditional stainless steels, making it the industry standard for seawater handling, concentrated brine processing, and aggressive chemical pipelines. Engineered for durability and high-torque precision with an integrated manual gear actuator.

🏭 Engineering & Compliance Highlights:

  • Material Mastery: High-performance TA10 (Ti-0.3Mo-0.8Ni) Titanium Alloy for extreme service.
  • Structural Advantage: Fixed trunnion design provides superior sealing stability under harsh chemical exposure.
  • Operation: Heavy-duty gear operator ensures smooth actuation in complex industrial layouts.
  • Standardization: Design based on international industrial standards for seamless project integration.
Categories: , Tags: , , , ,

General Technical Specifications

Engineered for zero-leakage and long-lasting durability, our trunnion mounted ball valves meet the highest international standards for fluid control infrastructure.

Design & Manufacture Standard API 6D, ASME B16.34
Face-to-Face Dimension ASME B16.10, API 6D
Flange Connection ASME B16.5 (RF, RTJ)
Size Range 2″ – 24″ (DN50 – DN600)
Pressure Rating Class 150LB – 2500LB (PN16 – PN420)
Body Material Titanium Alloy (TA10)
Seat Material PTFE, RPTFE, NYLON, PEEK, Metal-to-Metal
Operation Methods Bare Stem, Manual Gear, Pneumatic, Electric Actuator
Quality Assurance 100% Hydraulic & Air Pressure Test Before Dispatch

TA10 Titanium Alloy Performance

In environments where standard stainless steel fails, TA10 (Ti-0.3Mo-0.8Ni) excels due to:

  • Extreme Corrosion Resistance: Superior performance in seawater, concentrated brine, and acidic chemical environments.
  • Pitting & Crevice Protection: Exceptional immunity to localized corrosion at high temperatures.
  • Mechanical Strength: Retains high structural integrity under extreme pressure loads.

Note: We provide full manufacturing capability for TA10 titanium valves as per international standards. Material Test Reports (MTRs) and third-party inspections are available for all critical pipeline orders upon request.

🌐 Global Standards & Manufacturing Flexibility:

As a dedicated source manufacturer, we offer full engineering and production customization to meet your regional project specifications. All our valve series can be customized and manufactured in strict accordance with the following international standards:

  • American Standards: ASME B16.34, API 6D, API 607 (Fire-Safe), Flanges to ASME B16.5 (RF/RTJ Finish).
  • European Standards: DIN EN 1983, EN 1092-1, Face-to-Face to EN 558 (PN10, PN16, PN40, PN63).
  • Material Traceability: Available in ASTM/ASME grades (WCB, LCB, CF8, CF8M, Duplex, Titanium) and equivalent international designations.

Need custom ASME/DIN engineering drawings or a multi-standard cross-reference chart? Request a technical quote now!

⚡ Turnkey Automation Solutions Available

Beyond standard manual configurations, we specialize in delivering complete, fully assembled automated valve packages. Engineered with standard ISO mounting dimensions, we can readily upgrade and equip this valve series with:

  • Pneumatic Actuators (Double Acting or Spring Return)
  • Electric Actuators (On/Off or Modulating control)
  • Hydraulic & Electro-Hydraulic Operators for severe heavy-duty torque
  • Accessories: Solenoid valves, limit switch boxes, smart positioners, and air filter regulators.

Send us your technical parameters for a complete automated assembly quote.
