DN150 PN10 2205 Duplex Stainless Steel Ball Valve with Flanged Connections
DN150 PN10 2205 Duplex Stainless Steel Ball Valve with Flanged Connections
,

DN150 PN10 2205 Duplex Stainless Steel Ball Valve

Get a Quote Download Tech Specs

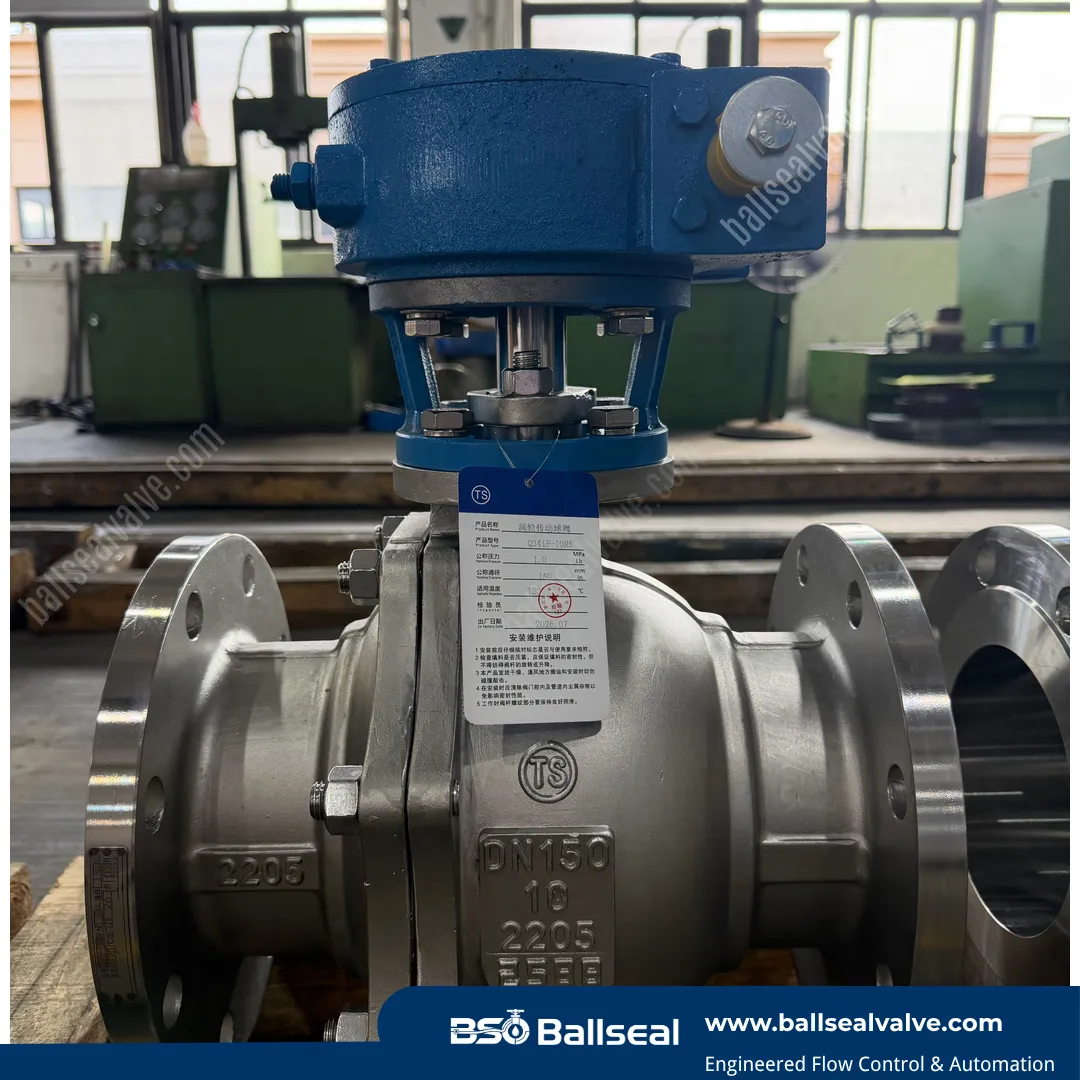

The DN150 PN10 ball valve features a robust construction with 2205 duplex stainless steel and flanged end connections, catering to medium-pressure pipeline systems while offering superior corrosion resistance.

🏭 Engineering Highlights:

  • Feature: Premium 2205 duplex stainless steel construction eliminates vulnerabilities in corrosive environments.
  • Connections: Flanged ends provide secure and leak-proof assembly.
  • Pressure Rating: Conforms to PN10 standards for medium-pressure applications.
  • Design: Anti-static and fire-safe for enhanced operational safety.
Categories: , Tag:

Detailed Technical Specifications

This DN150 ball valve, crafted from premium 2205 duplex stainless steel, is engineered for heavy-duty operation in medium-pressure systems (PN10). Featuring flanged end connections and an anti-static, fire-safe design, it delivers reliable flow control in corrosive environments.

Valve Type Ball Valve
Design Standard Anti-static, Fire-safe Design
Body Material 2205 Duplex Stainless Steel
Pressure Rating PN10

Material Construction

Component Material Grade
Body 2205 Duplex Stainless Steel
Ball 2205 Duplex Stainless Steel
Stem 2205 Duplex Stainless Steel
Seat PTFE
Gasket Graphite

Main Dimensions

Size Face-to-Face (mm) Flange OD (mm) Height (mm) Weight (kg)
DN150 280 285 365 18
DN100 230 215 280 12
DN200 340 340 450 25

🌐 Material Integrity & Global Standards

Built to meet international standards, ensuring reliable performance in corrosive and medium-pressure applications. Stringent quality assurance protocols are applied to all valves.

Design Feature

Anti-static, Fire-Safe Design
End Connection

Flanged
Material

2205 Duplex Stainless Steel
Pressure Class

PN10
Seat Material

PTFE
