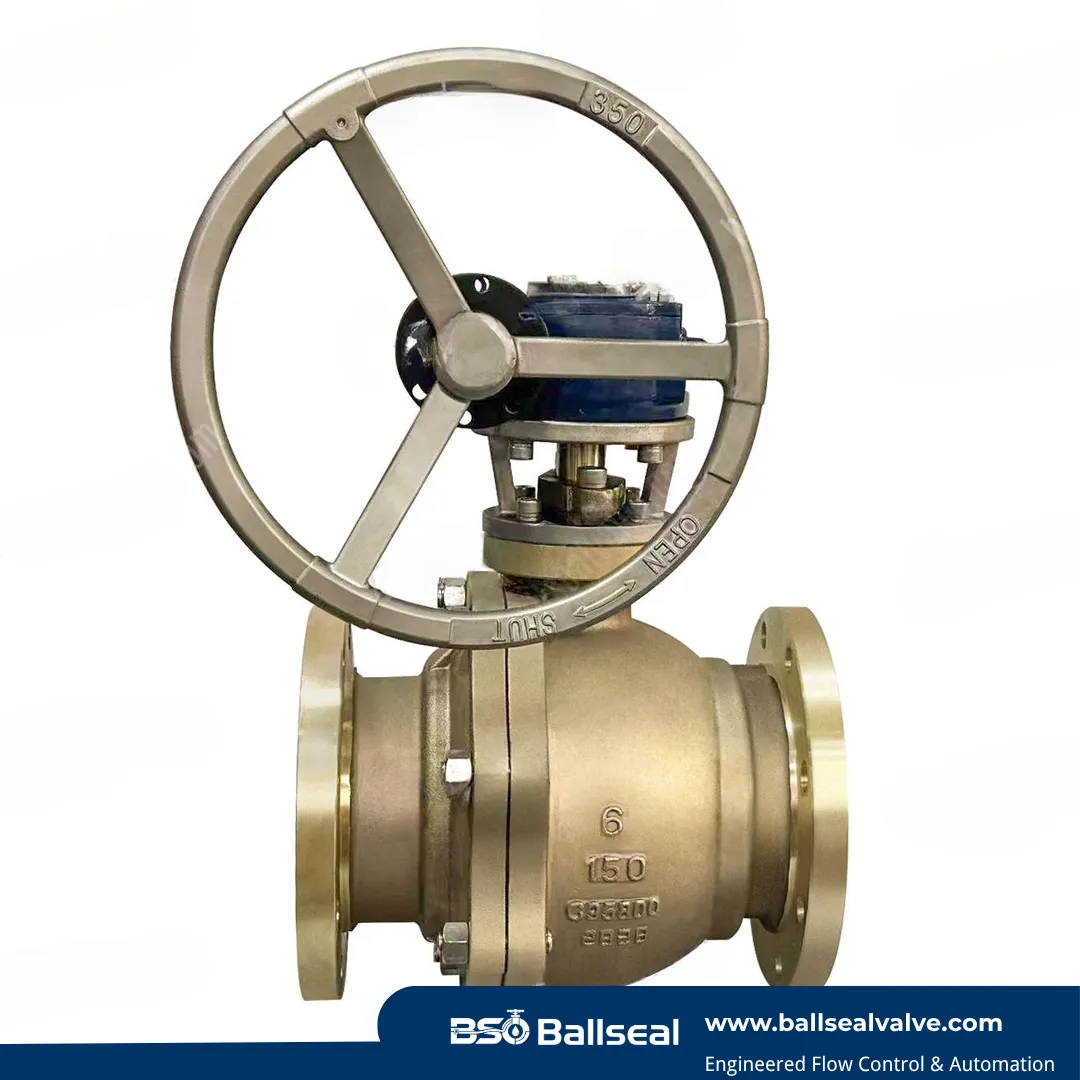

6 inch C95800 ball valve with 150LB pressure rating and flange connection
,

6 Inch C95800 Ball Valve, Class 150LB Flanged | High Corrosion Resistance Valve

Get a Quote Download Tech Specs

This 6-inch ball valve made from durable C95800 material is engineered to handle robust pipeline needs. Designed for Class 150 pressure rating with a reliable flanged connection, it ensures high performance for corrosive environments.

🏭 Engineering Highlights:

  • Feature: Corrosion-resistant C95800 material for marine and industrial applications
  • Feature: Full ANSI Class 150 compliance for pressure integrity
  • Feature: Flanged end connections ensuring secure installation
  • Feature: Fire-safe design suitable for critical pipeline systems
Categories: , Tag:

Detailed Technical Specifications

Introducing our 6-inch ball valve constructed from C95800, a nickel-aluminum bronze alloy designed for superior corrosion resistance in saltwater and chemically aggressive environments. The valve adheres to Class 150 pressure ratings with flanged connections to ensure durability and operational safety for offshore and industrial pipelines.

Valve Type Ball Valve
Design Standard Fire-Safe Design, Floating Ball, Full port
Body Material C95800
Pressure Rating Class 150

Material Construction

Component Material Grade
Body C95800
Ball C95800
Stem Monel K500
Seat Peek

Main Dimensions

Size Face-to-Face (mm) Flange OD (mm) Height (mm) Weight (kg)
6 inch 292 345 210 32
8 inch 320 400 240 45

🌐 Material Integrity & Global Standards

Our valves undergo strict ISO and ANSI testing to ensure quality and reliability, especially for demanding marine environments.

Design Feature

Fire-Safe Design, Floating Ball, Full port
End Connection

Flanged
Material

C95800
Pressure Class

Class 150
Seat Material

Peek
